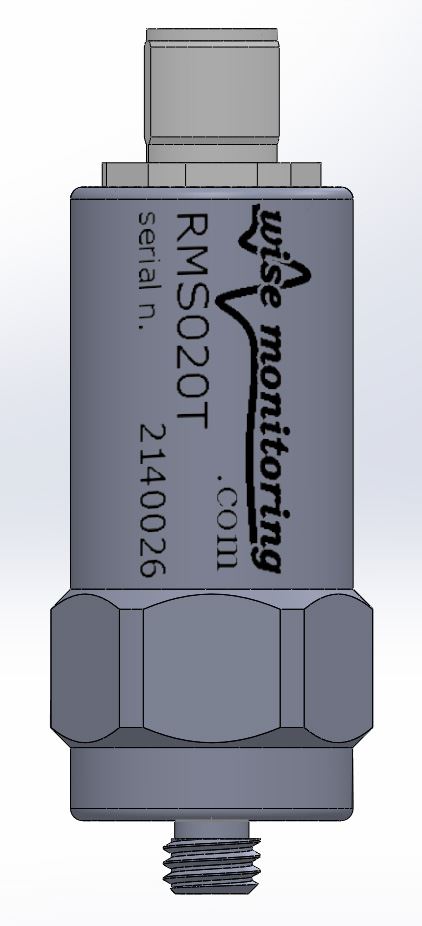

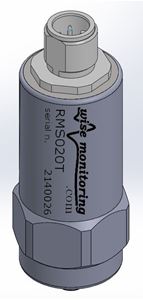

RMS020T

The RMS020T vibration and transmitter provides two 4-20 mA current loop signals that are proportional to the true RMS value of vibration velocity and to temperature for equipment online protection and condition monitoring.

View DatasheetDatasheet

Products specifications
Vibration Output signal 4-20 mA
Vibration Measuring range 0-20 mm/s
Vibration Frequency range 2 - 1600 Hz
Temperature Output signal 4 - 20 mA
Temperature measuring range -14 ºC to 83 ºC
Power Requeriments 8 - 36 VDC
Material AISI 304
Operating Temperature -40º to 85ºC
Sealing IP 68
Weight 80 g
