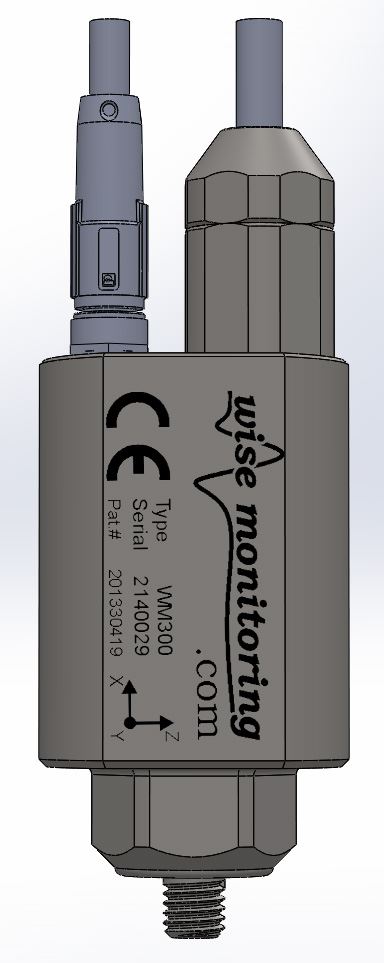

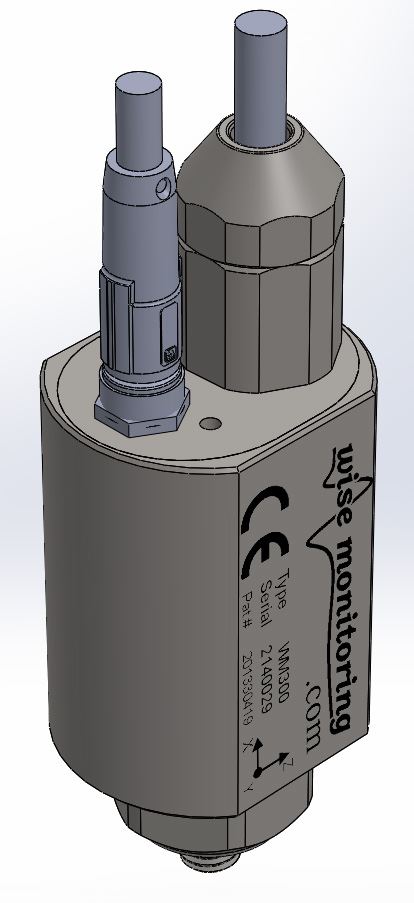

WM300

• Frequency range 0.5 - 1600 Hz (X and Y),  0.5 - 550 Hz (Z)
• Two inputs/outputs
Datasheet

The WM300 vibration sensor measures temperature and three axis vibration, providing displacement, speed and acceleration values and their spectral analysis and manage two inputs and two outputs for equipment online protection and condition monitoring.

View DatasheetDatasheet

Products specifications
Measuring range ± 20 g
Precision 0.001 g
Frequency range X axis 0.5 Hz - 1600 Hz
Frequency range Y axis 0.5 Hz - 1600 Hz
Frequency range Z axis 0.5 Hz - 550 Hz
Power supply POE
Communication Ethernet, MODBUS TCP
Connector RJ45
Material AISI 304
Operating Temperature -40º to 85ºC
Sealing IP 65
Weight 240 g
Input 2 Digital pnp
Output 2 Digital pnp
